80mm Synthétiseur Vocal
BDV

Synthétiseur vocal MP3 BDV reproduisant des messages préenregistrés sous format MP3 avec un son d’une qualité incomparable. Le type de montage du panneau donne un aspect propre et intégré pour la plupart des applications et sa programmation est facilitée grâce à la carte SD (vendue séparément) et au logiciel de programmation gratuit de Patlite (téléchargeable).

  • Contrôle des E/S
  • □80
  • Signalisation sonore MP3
  • Voix
  • 87dB
  • Intérieur / Extérieur
  • IP54
  • 80mm Synthétiseur Vocal BDV
  • Seul le type montage intégré est disponible.
  • Capable de produire un volume élevé allant jusqu’à 87 dB (à 1m) en dépit de sa petite taille
  • La commande du volume du panneau avant permet de régler le volume facilement.
  • L’utilisation d’une carte SD permet de modifier les messages sans démonter l’appareil.
  • Ecologique car l’unité se conforme aux directives RoHS de l’UE.
  • Plusieurs modes de lecture disponibles pour diverses applications.
  • Inclut une entrée binaire en tant qu’option standard pour sélectionner jusqu’à 15 messages.
  • Prend en charge la sélection d’entrée en utilisant une base de transistor ouverte NPN.
  • L’unité se conforme aux Directives de l’UE et comprend la marque CE (BDV-15JF uniquement)
  • Deux coloris sont disponibles, vous pourrez ainsi choisir la couleur qui se mariera le mieux à votre installation.
  • Rapport de protection : IP54 (uniquement la face avant si encastré)

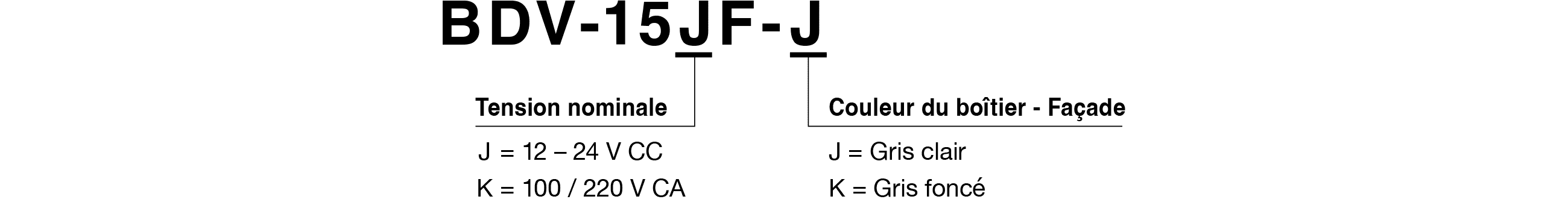

Caractéristiques du modèle

DIMENSIONS - 80mm x 80mm x 94.7mm
TENSION NOMINALE - 12/24V CC
- 100/220V CA
COULEUR DU BOÎTIER - Gris Foncé
- Gris Clair
VOLUME - Maximum 87dB à 1 mètre
ENREGISTREMENT SONORE - Durée d'enregistrement approximative : 63 secondes (Taux de bits=64k/s)
SÉLECTION DES CANAUX - Sélectionnez 1 des 4 canaux disponibles par entrée de signal sur 1 ou 4 bornes
- En mode binaire, sélectionnez 1 des 15 canaux disponibles par entrée de signal parmi 4 bornes
NORMES DE CONFORMITÉ - Marquage CE
- RoHS
- Technologie de codage audio MPEG Layer-3 sous licence de Fraunhofer IIS et Thompson Licensing
INDICE DE PROTECTION - IP54
FONCTIONS - Le mode de réduction sonore réduit le volume de 10 dB

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".

Téléchargements de fichiers

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".

BDV  

BDV  

Pièces de rechange

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Slot Waterproof Cover
C25110015-F1 1

-

-

Terminal Cover
C15140003-F1 2

-

-

Mounting Bracket (2 pieces)
V82100001-F1 2

-

-
