Éclairage de travail série CWK
CWK

Éclairage industriel IP66G et IP67G, résistant à l'eau et à l'huile, LED longue durée de vie, très lumineuses. Eclairage de travail conçu plus particulierement pour l'industrie de la machine outils. Avec son design compact et résistant à l'environnement, son étanchéité et sa resistance aux projections de copeaux et d'huile, c'est la solution idéale pour les machines-outils.

  • 200
  • 300
  • 600
  • Continu sur
  • Éclairage LED
  • Intérieur
  • IP66G
  • IP67G
  • Éclairage de travail série CWK CWK
  • Étanche à l'eau et à l'huile
  • Utilise la technologie PATLITE "d'optimisation optique" pour la lentille afin d'élargir l'angle de diffusion de la lumière.

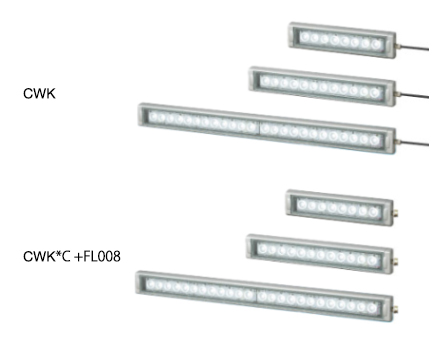

  • Disponible en trois longueurs de 200mm, 300mm et 600mm
  • Livré avec un câble de 3m résistant à l'huile
  • Connecteur M12 4 broches(※CWK*C +FL008 uniquement)
  • Conçu plus particulièrement pour les machines-outils

Caractéristiques

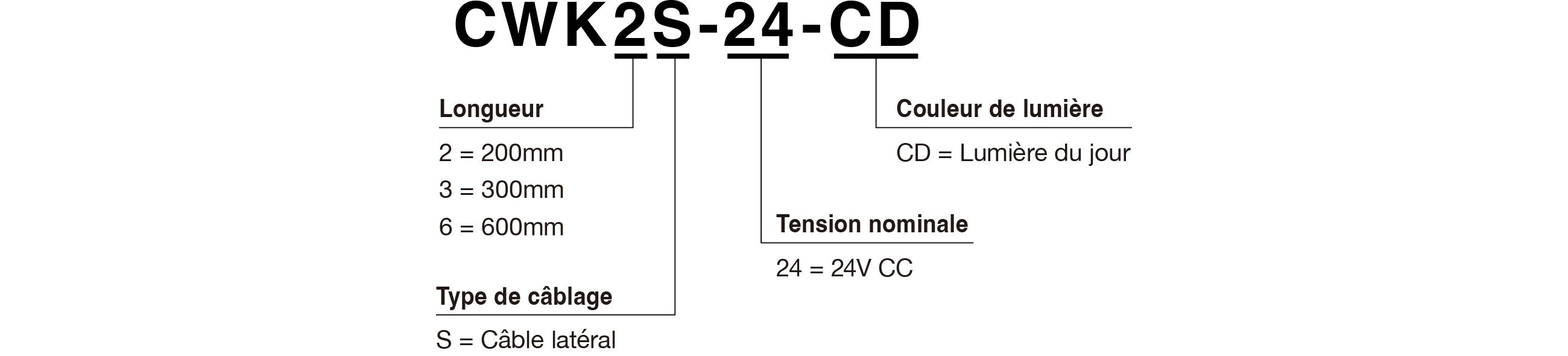

Dimensions ・ 200mm
・ 300mm
・ 600mm
Tension nominale ・ 24V DC(Polarized)
Style corporel ・ Livré avec un câble de 3m résistant à l'huile
・ Connecteur M12 4 broches(※CWK*C +FL008 uniquement)
・ Corps en aluminium
Matériau de la lentille ・ Verre trempé
Conformité Sandards ・ CE
・ UL
・ RoHS
Note de prorection ・ IP66G
・ IP67G
