Balise Lumineuse Multicolore Contrôlée par USB
NE-USB

Alimentation USB et contrôle multicolore facile : 7 couleurs peuvent être affichées pour répondre à vos besoins et applications.

  • Produits réseau
  • USB (alimentation par bus)
  • Détecteur tactile
  • Φ56
  • Balises de signalisation
  • Continu sur
  • Alarmes
  • S□: 65dB
  • W□: 88dB
  • Intérieur (vertical)
  • S□: IP20
  • W□: IP65

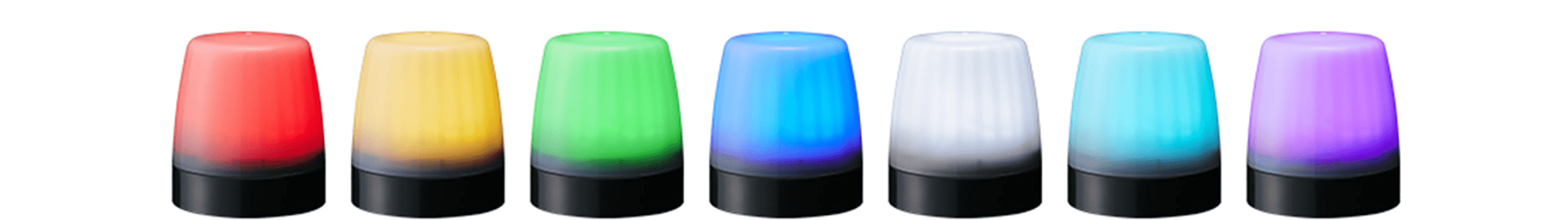

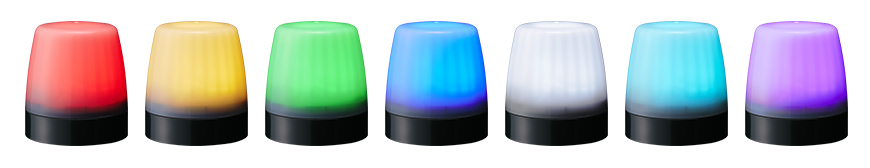

  • Multicolore (7 couleurs)
  • Balise Lumineuse Multicolore Contrôlée par USB NE-USB
マルチカラーモデル



  • S'alimente via le bus USB et se contrôle avec un seul câble lorsqu'elle est connectée à un PC.
  • Le modèle avec capteur tactile peut envoyer un signal à un dispositif de couche supérieure en touchant simplement le dessus de la balise, éliminant ainsi le besoin d'un interrupteur physique.
  • Programmation facile à l'aide de la bibliothèque logicielle DLL.
    Peut également être contrôlée par divers protocoles, permettant ainsi l'utilisation d'autres systèmes d'exploitation que Windows.
  • Le contrôle est possible sans installation de pilotes dédiés car il s'agit d'un périphérique de classe HID.
  • Idéal pour les bureaux et les espaces de vente au détail. Obtenez une notification discrète mais perceptible avec la lumière douce de la lentille translucide et des alarmes qui ménagent l'oreille.
  • L'aimant en néodyme permet une installation facile sur les bureaux et les murs.
    De plus, le réceptacle de vis 1/4 pouce prend en charge une large gamme de méthodes de montage telles que les trépieds. ※NE-S□-USB
  • Options de montage sur tube et montage mural disponibles (NE-001D pour le montage sur tube et NE-002D pour le montage mural).
※Un câble USB (type A mâle vers type C mâle) n'est pas fourni. À obtenir séparément par le client.
※Connaissance en programmation requise pour contrôler l'unité depuis un PC via le port USB.

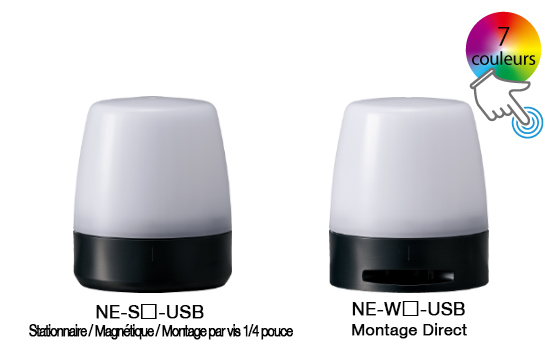

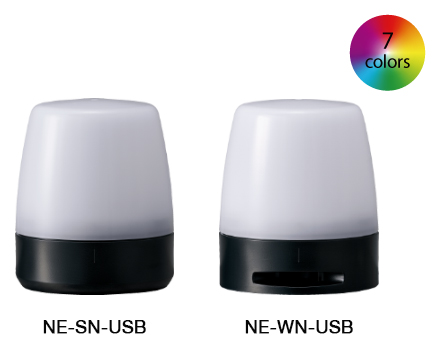

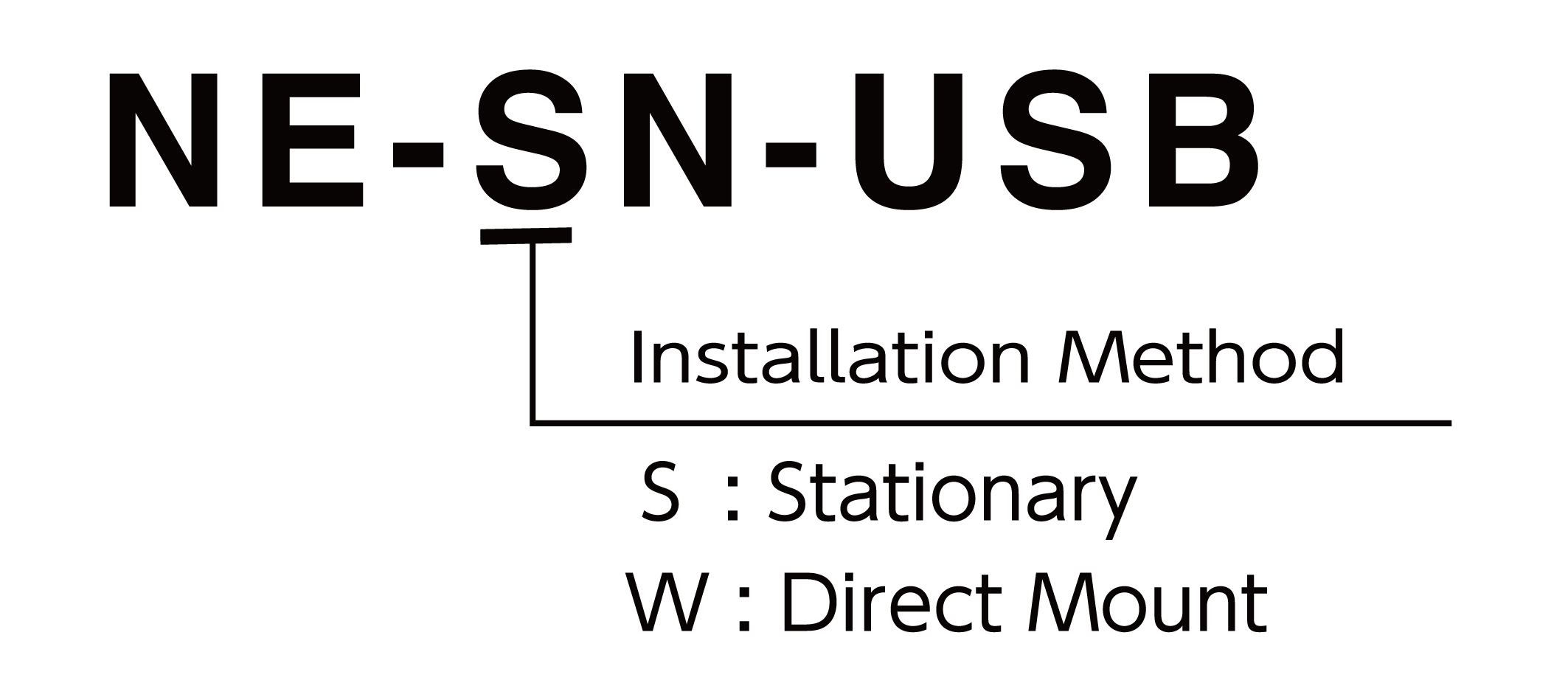

Modèle NE-S□-USB NE-W□-USB
Tension Nominale 5V DC (Alimentation par Bus USB)
Taille Φ56
Indice de Protection IP 20 IP 65 (Vertical)
Exemple d'Installation snマグネット取付イメージ sn三脚取付イメージ wnNE-002Dイメージ wnポール取付イメージ

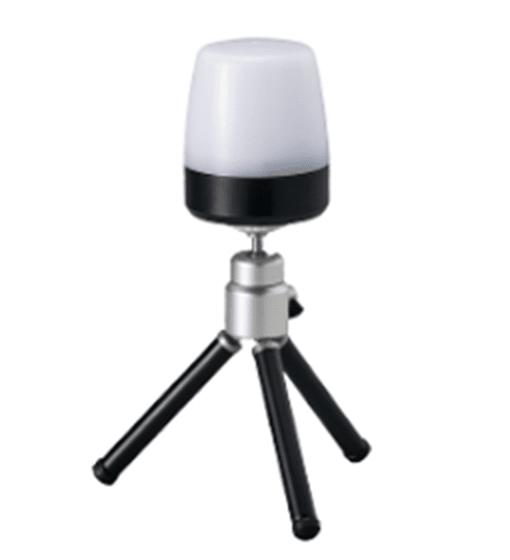

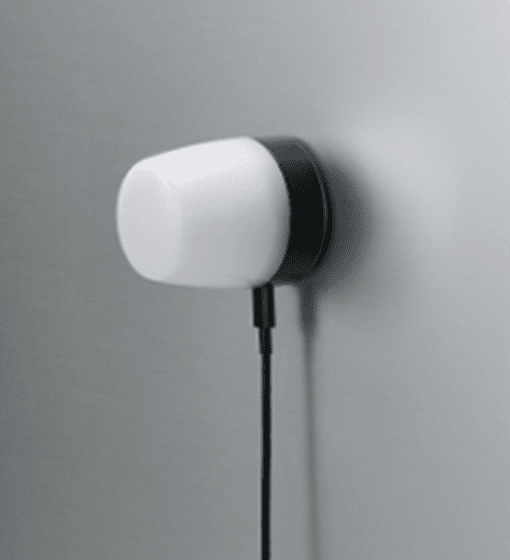

Montage aimanté Montage par vis 1/4 pouce
※Veuillez vous procurer un trépied séparément.

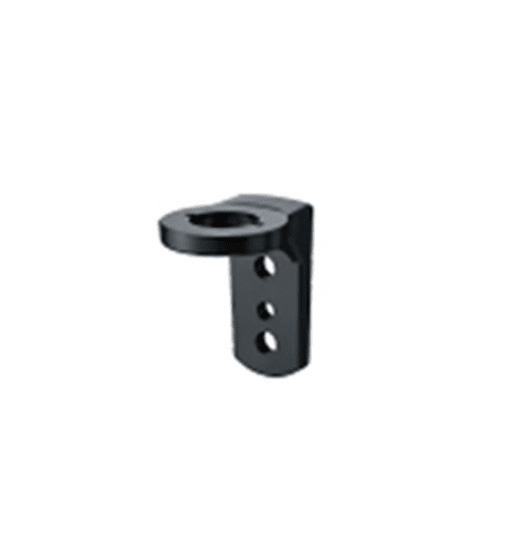

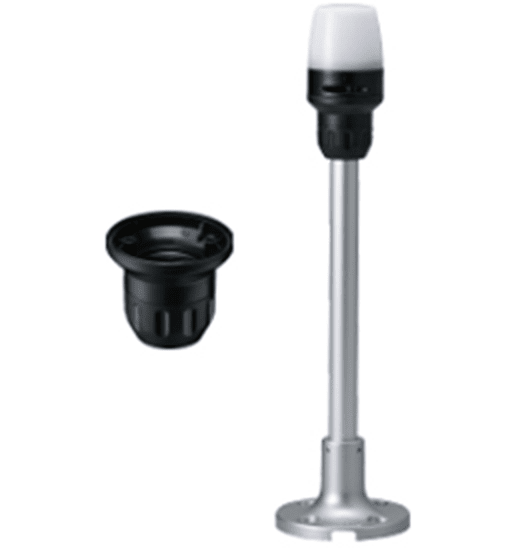

Support pour montage mural Montage sur tube
(support de tube)
