Tours de signalisation LED intelligents Φ60mm
Série LA6
Cet appareil programmable simplifie les opérations en consolidant 21 couleurs et 11 alarmes en un seul numéro de pièce. Les fonctionnalités incluent des lumières continues, clignotantes ou pulsantes, une interface web pour une configuration facile, et des options d'alimentation polyvalentes en 24V DC et 100-240V AC.
- Contrôle des E/S
- Colonnes lumineuses
- Φ60
- Continu
- Clignotant
- Impulsion (onde sinusoïdale)
- Alarmes
- 85dB
- Intérieur
- IP65 (DC24V, sans alarme)
- IP54
- Multicolore (21 couleurs)
特長
- Interface web intégrée pour une configuration rapide et facile
- Comprend 21 couleurs LED programmables
- Lumière continue, clignotante ou pulsante
- 24V DC et 100-240V AC (type M2)
- Cliquez ici pour télécharger [lien de téléchargement] le logiciel de programmation gratuit.
Spécifications
Dimensions | Φ60mm |
Tension nominale | 24V DC 100-240V AC (Type WJ uniquement) |
Fonctions | Fonctionne en trois modes d'affichage différents : Affichage unique Affichage déclenché par temps Affichage déclenché par impulsion |
Montage | Montage direct (TN, Type WJ) Montage sur poteau en acier (Type LJ) |
Couleur du boîtier | Blanc cassé Argent |
Style du boîtier | TN : Terminal sans vis LJ : Poteau avec connexion de câble WJ : Montage direct avec connexion de câble |

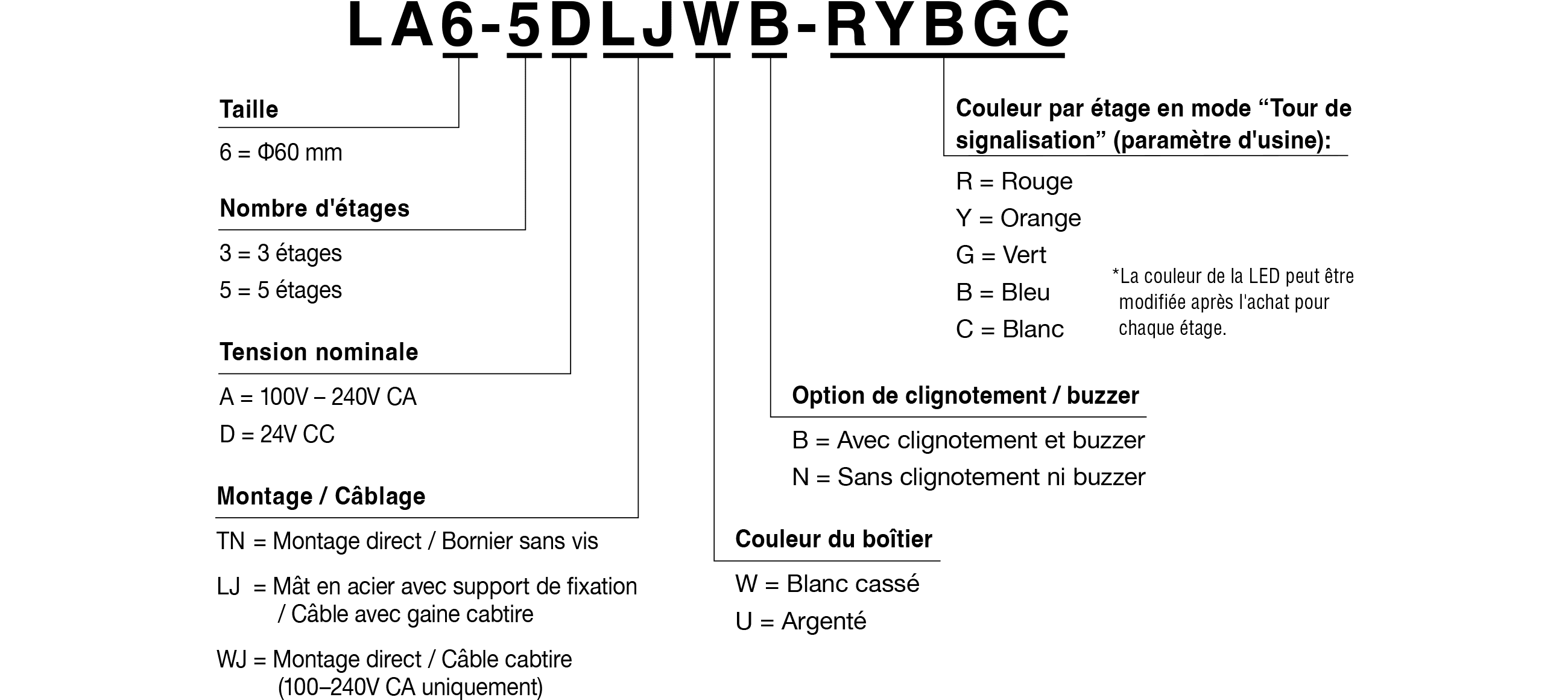

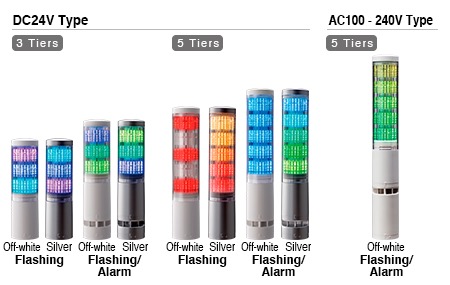

Niveaux empilables | 3 niveaux 5 niveaux |
Couleurs des modules | 21 couleurs |
Style audible | 11 sons d'alarme disponibles |
Normes de conformité | Directive EMC Directive RoHS UL 508 FCC KC |
Indice de protection | IP65 IP54 (avec alarme) |
Remarques | Application logicielle téléchargeable gratuitement Composants reconnus UL (type 24V uniquement) |
Vidéo
Pour télécharger le logiciel gratuit depuis notre page Web Exclusive LA6, cliquez ici !
Instruction Manual/Specifications/Outside Drawing
(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".
(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".
manuel d'instructions
CAO 2D / CAO 3D
Spécifications du produit
Pièces de rechange
LA6-□DLJW□(Steel Pole & L-Bracket with Cable )
LA6-□DLJW□(Steel Pole & L-Bracket with Cable )
Pièces de rechange
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|
B22202027-7F1 | 1 | ||||
|
B31310001-7F1 | 1 | ||||
|
B22100071-7F1 | 1 | ||||
|
B25110042-F1 | 1 | ||||
|
B22210134-7F1 | 1 | ||||
|
B25110047-F1 | 1 | ||||
![]() |
S33533110-222F1 | 2 | ||||
![]() |

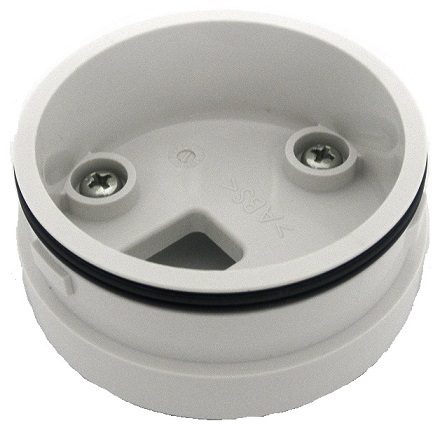

S33642010-222F1 | 2 |
LA6-□□WJW□(Direct mount with cable connection)
LA6-□□WJW□(Direct mount with cable connection)
Pièces de rechange
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|
B31310001-7F1 | 1 | ||||
|
B22100071-7F1 | 1 | ||||
|
B25110042-F1 | 1 | ||||
|
B22202027-7F1 | 1 |
LA6-□DTNW□(Direct mount with Screwless Terminal Block connection)
LA6-□DTNW□(Direct mount with Screwless Terminal Block connection)
Pièces de rechange
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|
B31310001-7F1 | 1 | ||||
|
B22100071-7F1 | 1 | ||||
|
B25110042-F1 | 1 | ||||
|
B22202028-7F1 | 1 |
LA6-□DTNU□(Direct mount with Screwless Terminal Block connection)
LA6-□DTNU□(Direct mount with Screwless Terminal Block connection)
Pièces de rechange
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|

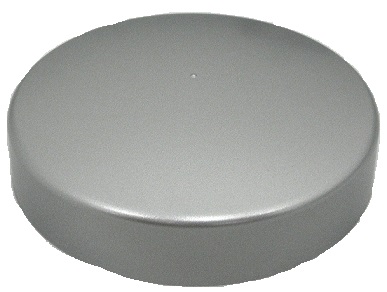

B31310001-9F1 | 1 | ||||
|
B22100071-9F1 | 1 | ||||
|
B25110042-F1 | 1 | ||||
|

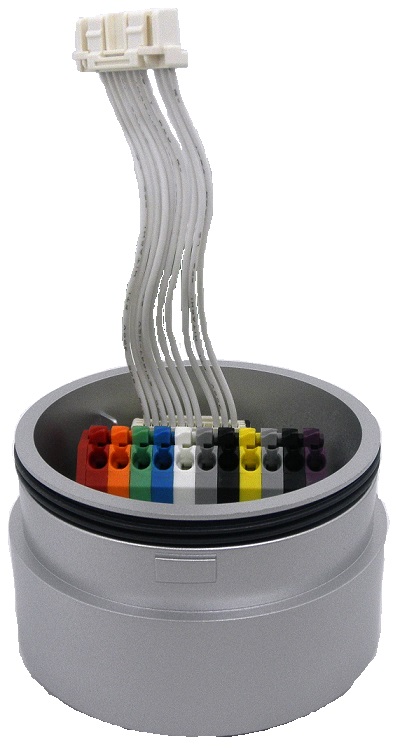

B22202028-9F1 | 1 |
