Tour de signalisation manuelle (LR5)

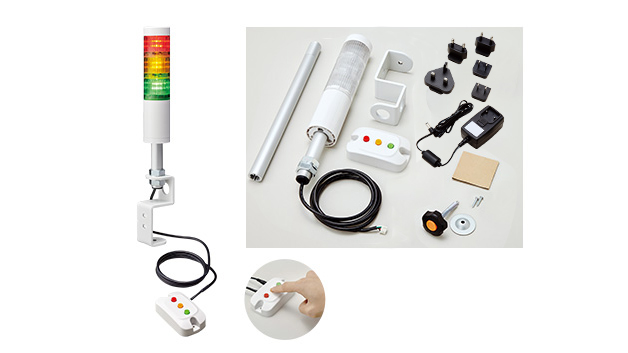

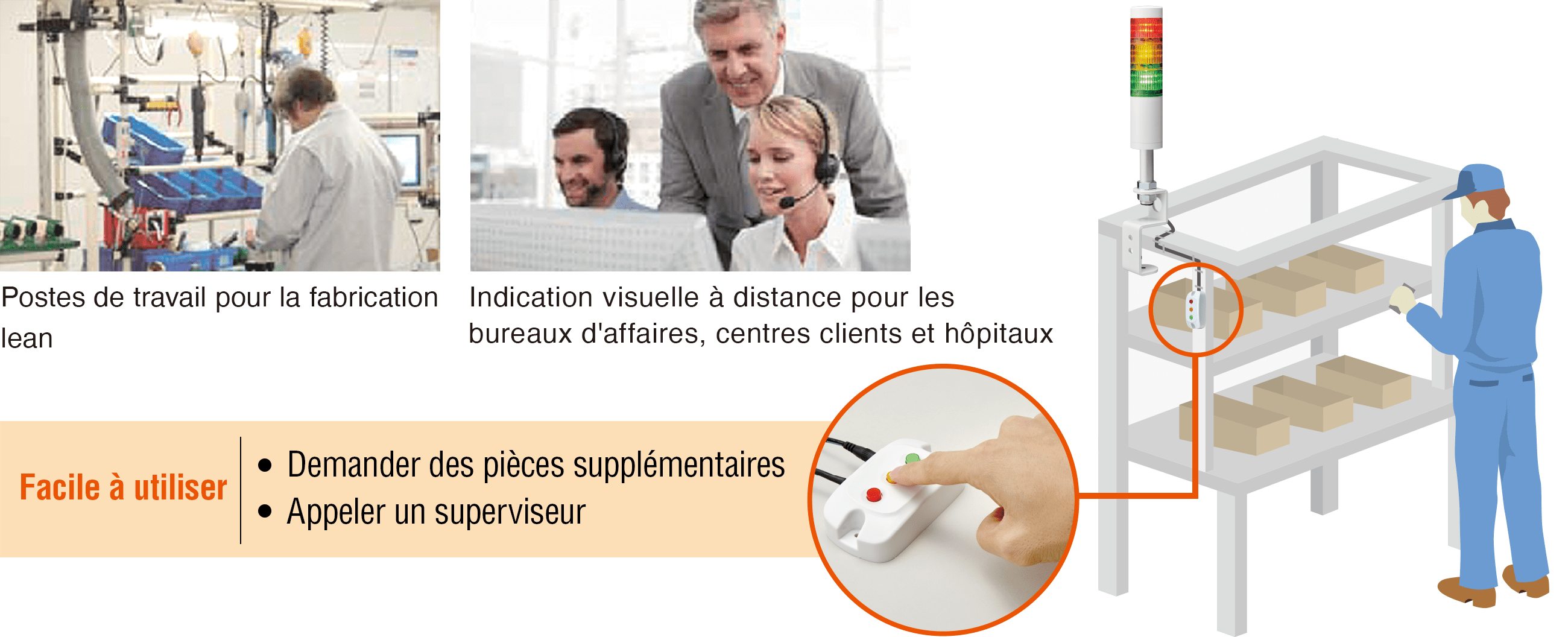

Le kit HSST est une solution clé en main rentable pour contrôler manuellement notre tour de signalisation DEL LR5 de la prochaine génération. Le kit comprend un LR5 à 3 niveaux, 2 longueurs de poteau, une boîte de contrôle, des supports et un adaptateur CA. Idéales pour les opérations d’assemblage manuelles.

  • Colonnes lumineuses
  • Φ50
  • Continu sur
  • Intérieur
  • IP54 (Tour de signalisation : en position debout)
  • IP20 (Boîte de commutation)
  • Rouge
  • Ambre
  • Vert

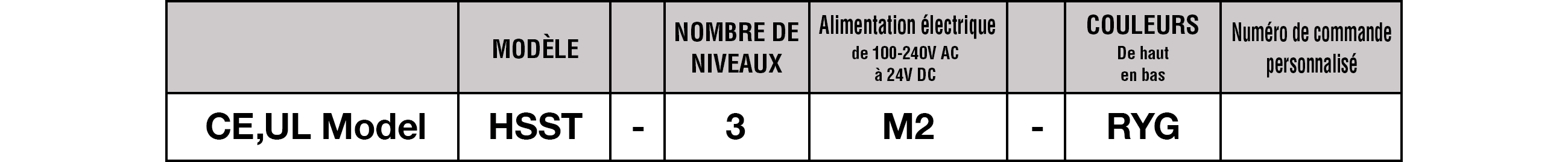

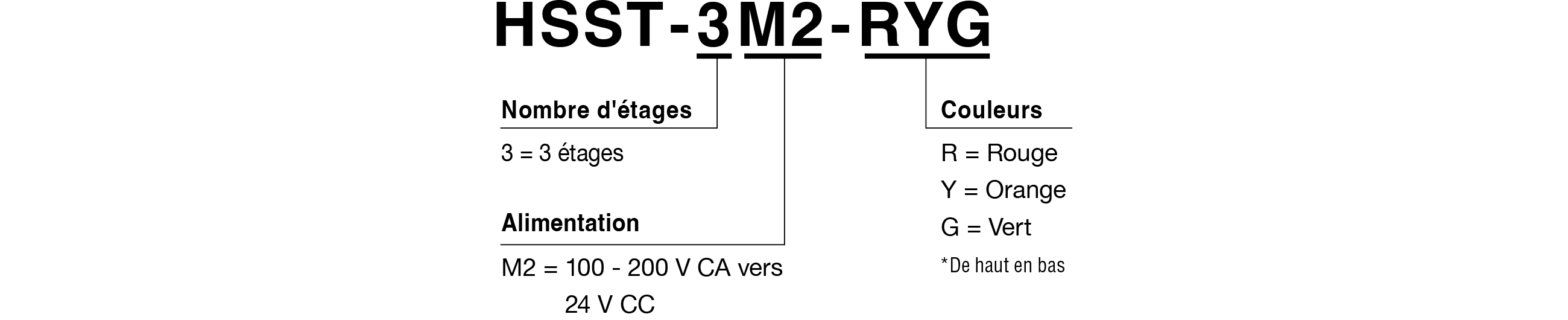

  • Tour de signalisation manuelle (LR5) HSST-3M2

Boîte de commutation de voyant à 3 boutons sans entretien avec vis de montage. L’adaptateur d’alimentation CA (100 à 240 VCA) avec câble 5 pi Le kit comprend une tour de signalisation DEL d’un diamètre de 50 mm à 3 niveaux avec câble 4 pi, des supports de fixation qui s’ajustent aux partitions standard, une boîte de commutation et un adaptateur d’alimentation CA. Couleurs des voyants : rouge, jaune, vert. Caractéristiques


Dimensions - Φ50mm x 307 (short pole)
- Φ50mm x 507 (long pole)
Rated Voltage - 100-240VAC
Body Color Off-white
Functions - Continuous Lighting
- Manual Control
Mounting - Bracket-clamp Mount
- Wall Mount
- Cubicle-edge Mount
Stackable Tiers - Available only as a three-tier tower
Module Colors - LED Color: Add (Only Red/Amber/Green are available)
- Lens Color: Clear (Shows color when activated)
Conformity Standards - RoHS
- UL48
-*EN61000-6-4, EN61000-6-2 EN61000-3-2, EN61000-3-3
Protection Rating - IP20 (Switch Box)
- IP54 (Signal Tower)

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".

Téléchargements de fichiers

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".



Pièces de rechange

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover: Off-white
B32310071-7F1 1

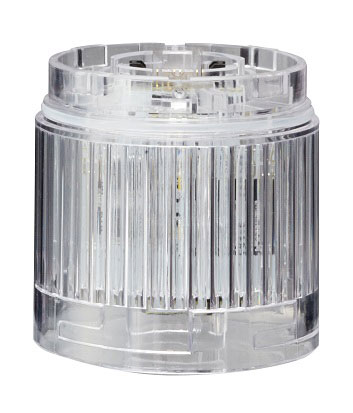

																LED Unit: Red (clear lens)
B72100248-1F1 1

Includes O-ring.

																LED Unit: Amber (clear lens)
B72100248-2F1 1

Includes O-ring.

																LED Unit: Green (clear lens)
B72100248-3F1 1

Includes O-ring.

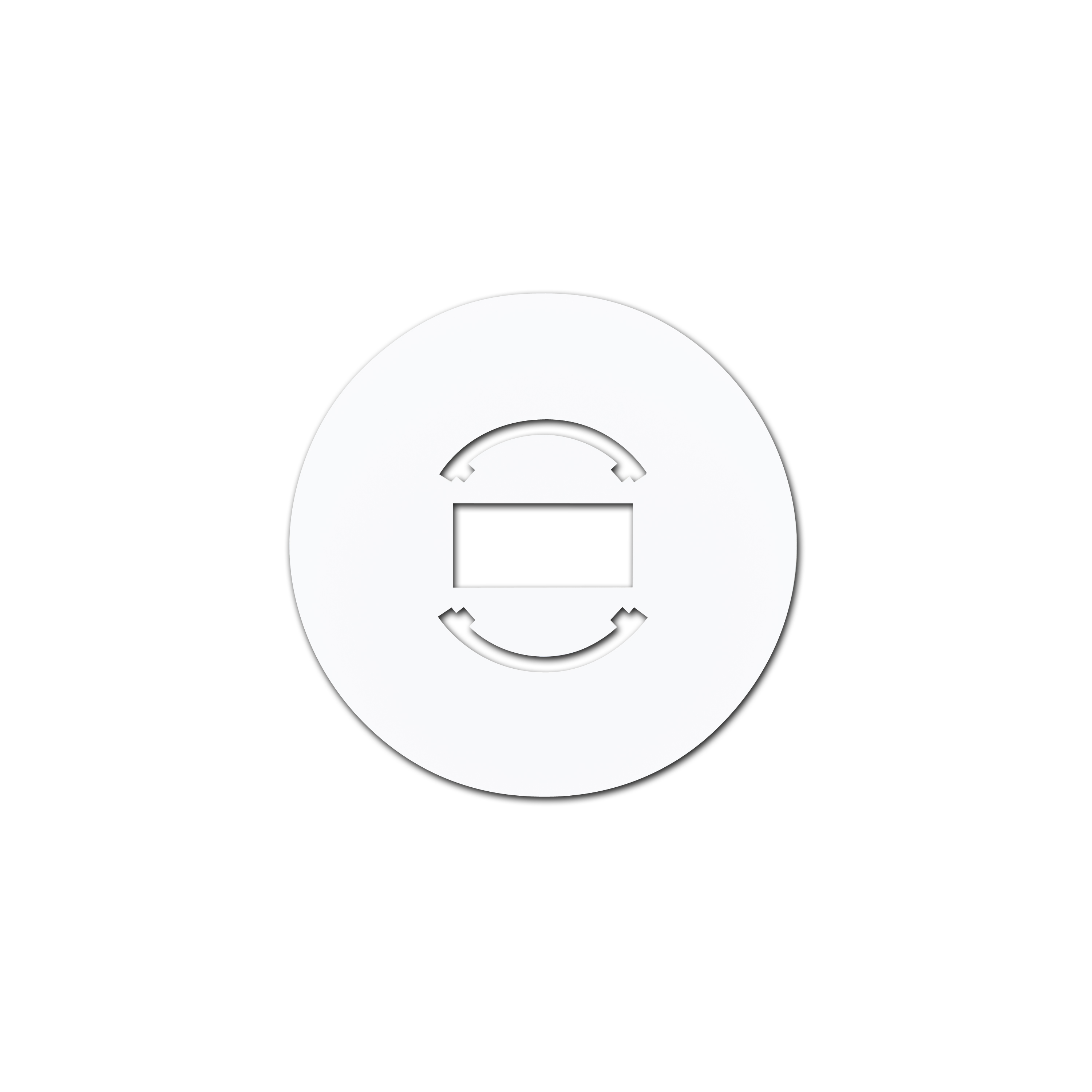

																Filter Sheet (5 pieces)
B25310067-5F1 3

Package contains 5 pieces.

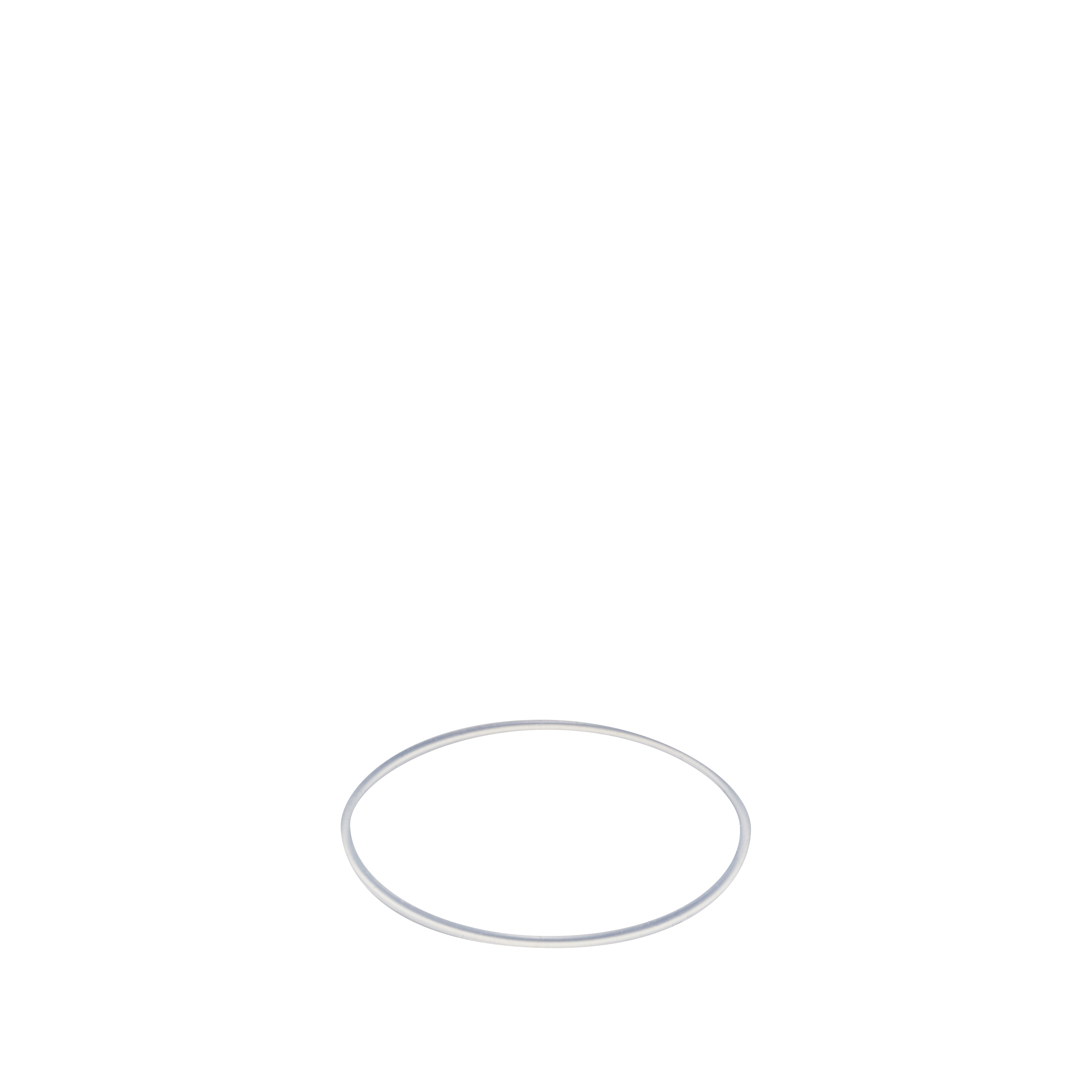

																O-ring (5 pieces)
B25110066-F1 5

Package contains 5 pieces.

																Pole Bracket: Off-white
B22210160-7F1 1

Kit includes O-ring, Waterproof Ring and self-tapping screw (2 pieces)

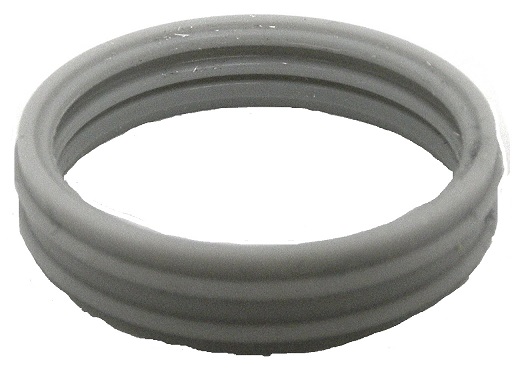

																Waterproof Ring
B25110047-F1 1

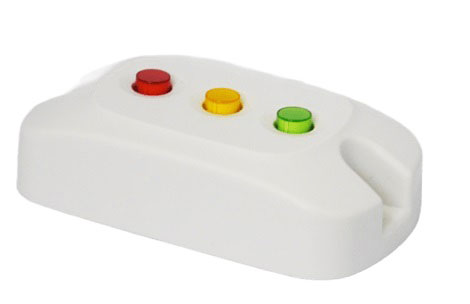

																Switch Box
T16000002-F2 1

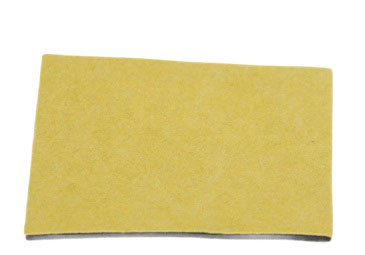

																Double-sided Tape (5 pieces)
B96110002-F1 1

Package contains 5 pieces.

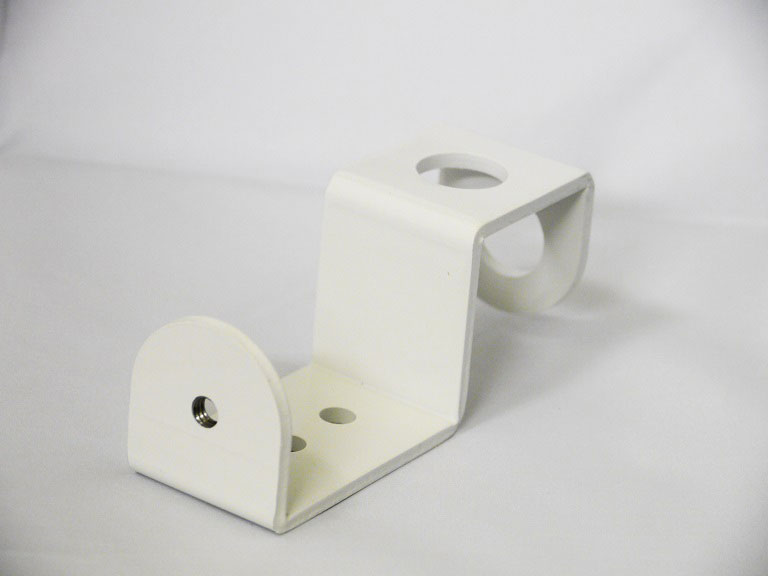

T85130016-F1 1

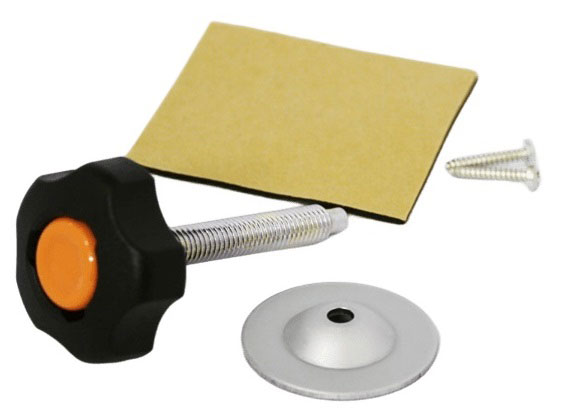

																Accessory Assembly
T81800030-F1 1

Miscellaneous items included with product.
Tightening Screw、 Fitting Plate、Double-sided Tape、
Tapping Screw (3×18) (2 pieces)
