Tours de signalisation DEL 70mm
LR7

Tour de signalisation de la prochaine génération avec des voyants ultra lumineux, une conception modulaire et un grand choix d’options pour surmonter les applications les plus difficiles.

  • Contrôle des E/S
  • Colonnes lumineuses
  • Φ70
  • Continu sur
  • Clignotant
  • Alarmes
  • 90dB
  • Intérieur (droit)
  • IP65 (droit)
  • Rouge
  • Ambre
  • Vert
  • Bleu
  • Blanc
  • Tours de signalisation DEL 70mm LR7
  • Lentille remaniée et construction de module améliorée pour offrir un éclairage lumineux et uniforme pour une visibilité à plus grandes distances.
  • Le module de son entièrement clos remodelé et remanié maintient une protection importante contre l’eau et la poussière tout en produisant des sons forts et omnidirectionnels. (LR5 DC12V : 80dB LR4 et LR5 : 85dB, LR6 : 88dB, LR7 : 90dB à 1 m)
  • Une conception modulaire « tourner et verrouiller » pour personnaliser facilement et configurer sur le terrain les unités DEL et les modules de son.
  • Un format lisse et une construction robuste pour fournir le maximum de performances dans les environnements rudes, avec un indice de protection IP65.
  • Tension nominale: DC24V.
  • Couleur de corps standard : blanc cassé. Corps en argent et noir disponibles comme composants seulement.
  • Un corps avec bornier est disponible comme composant en blanc cassé, argent ou noir (LR7-WT et LR7-KT).
  • Quatre options de montage : direct, poteau avec support en L, poteau avec support circulaire et poteau avec support pliant (blanc cassé seulement).

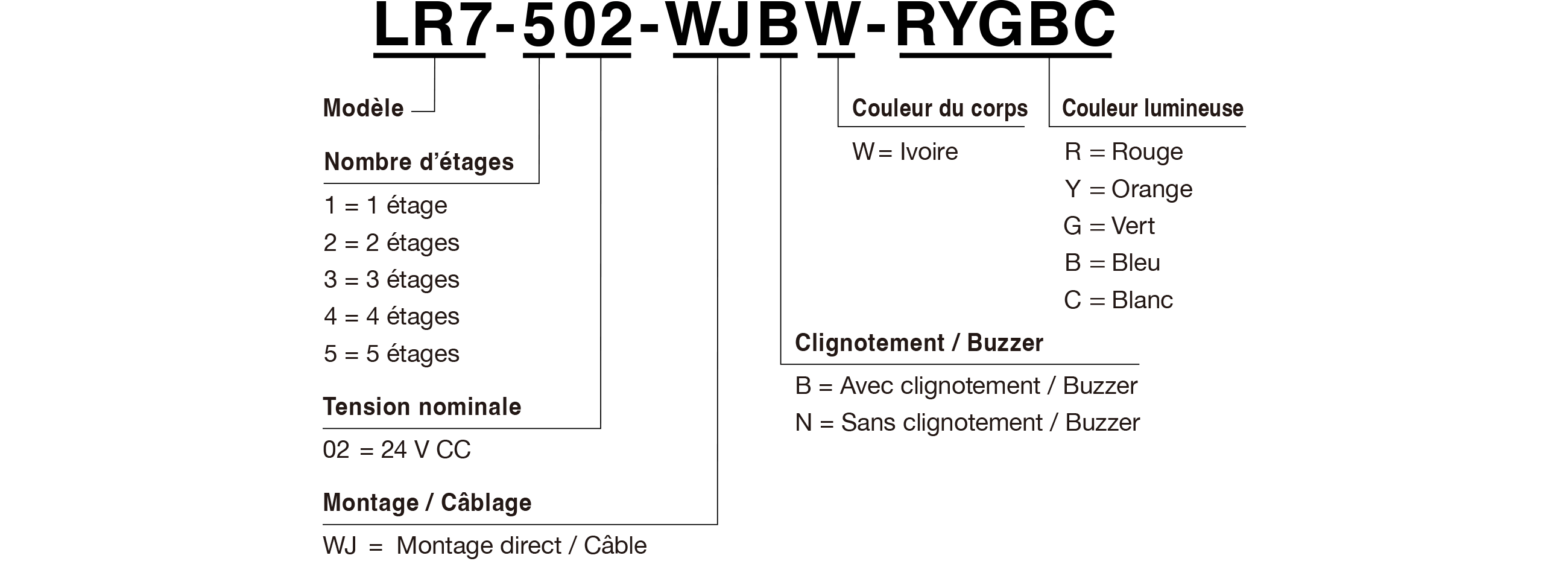

Model Code



Spécifications

Température ambiante de fonctionnement -20 ℃ ~ +50 ℃
Plage d’humidités de fonctionnement 90 % RH ou inférieur, sans condensation
Plage de températures de rangement -30℃ ~ +60℃
Plage d’humidités de rangement 90 % RH ou inférieur, sans condensation
Endroit de montage Usage intérieur
Direction du montage Position verticale
Indice de protection*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Conditions de l’environnement Position verticale
Résistance d’isolement Supérieur à 1 MΩ à 500 VCC entre l’alimentation et le châssis
Tension d’isolement CA 500V pour 1 minute entre les bornes et le châssis sans briser l’isolement (M2 : CA1500V pour 1 min.)
Fréquence de clignotement 60 ±2 clignotements/min.
Niveau sonore LR6Typ. 88dB
Réduction du son*2 ab. Réduction de -10dB
Conditions de l’environnement Tonalité du vibreur sonore nº 4 (balayage) à partir de toutes les directions à une distance de 1 m
Tonalité du vibreur sonore 4 modèles*2Nº 1Son intermittent rapide Nº 2Son continu Nº 3Haut-bas rapide Nº 4Son balayage
Sortie du transistor NPN / PNP (CA100 - 240V est NPN seulement)
Conformité aux normes ●UL 508, CSA-C22.2 nº 14
●FCC Partie 15 Sous-partie B Classe A
●Directive RoHS (EN IEC 63000)
●Directive EMC (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Directive basse tension (IEC/EN 60947-5-1, EN62471)*4

*1 : Le type LJ est IP54   *2 : Dépend des réglages du commutateur DIP   *3 : Sauf KT et M2 LJ   *4 : Type M2 seulement (sauf Type LJ)



Spécifications de l’unité DEL

Couleur Rouge Ambre Vert Bleu Blanc
Consommation actuelle/Consommation d’énergie Typ. 0,04A/1W
Max. 0,045A/1,3W



Spécifications de l’unité de vibreur sonore

Consommation actuelle/Consommation d’énergie Typ. 0,04A/1W
Max. 0,3A/1,3W
