Récepteur système d’acquisition de données sans fil WD PRO
WDR-LE-Z2-PRO

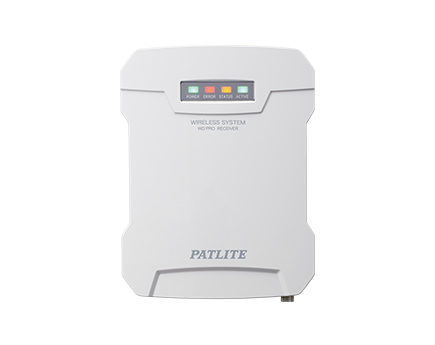

Le WDR-LE-Z2-PRO (récepteur WD PRO) est un récepteur qui fait partie du système d'acquisition de données sans fil de PATLITE. Ce système d'acquisition de données sans fil remonte les statuts lumineux (et buzzer) des colonnes lumineuses tours de signal connectées en temps réel. Ces données sont directement intégrées dans le logiciel BELOOGA TRACK pour la surveillance et l’analyse (amélioration du TRS (OEE) et la productivité. Le récepteur WD PRO est une version améliorée des récepteurs précédents et prend en charge une grande variété de protocoles, permettant une communication facile avec le système hôte et d'autres appareils sur votre atelier.

  • Produits sans fil
  • Sans fil (Zigbee)
  • Intérieur (horizontal, mur, plafond)
  • IP20
  • Récepteur système d’acquisition de données sans fil WD PRO WDR-LE-Z2-PRO
  • Compatible PoE
     Le récepteur WD PRO peut accéder à la fois à l'alimentation et aux données via un seul câble Ethernet afin de minimiser l'espace et les coûts de câblage.
  • Support de montage
     L'unité principale du récepteur WD PRO se fixe sur un support de montage mural.
     Cela permet une fixation facile ainsi qu'une polyvalence dans les positions de montage.
  • Diagnostics de connexion sans filv
     Le récepteur WD PRO est capable de suivre la qualité de la connexion sans fil entre le récepteur et ses émetteurs connectés.
     Jusqu'à 72 heures de résultats de diagnostic peuvent être collectées, prises à des intervalles de 10 minutes.
     Il existe 5 niveaux de résultats de diagnostic, permettant aux utilisateurs d'identifier quand il est nécessaire de modifier l'environnement d'installation.
     Ces données collectées peuvent facilement être consultées sur votre ordinateur via le navigateur de configuration.
  • Affichage Andon
     Affichage des états de colonnes et buzzers en temps réel de toutes les tours de signalisations connectées. Consultable sur l'écran de votre ordinateur via le navigateur de configuration.
     Cela peut être fait simultanément avec la collecte de données CSV.
  • Fonctions de collaboration
     En plus du protocole SOCKET simple, le récepteur WD PRO dispose de fonctions de collaboration utilisant la base de données Modbus / TCP et SQL.
       Ces protocoles simplifient la communication et la collecte de données entre les appareils de votre réseau.



Caractéristiques

Modèles Récepteur système d’acquisition de données sans fil
WD PRO

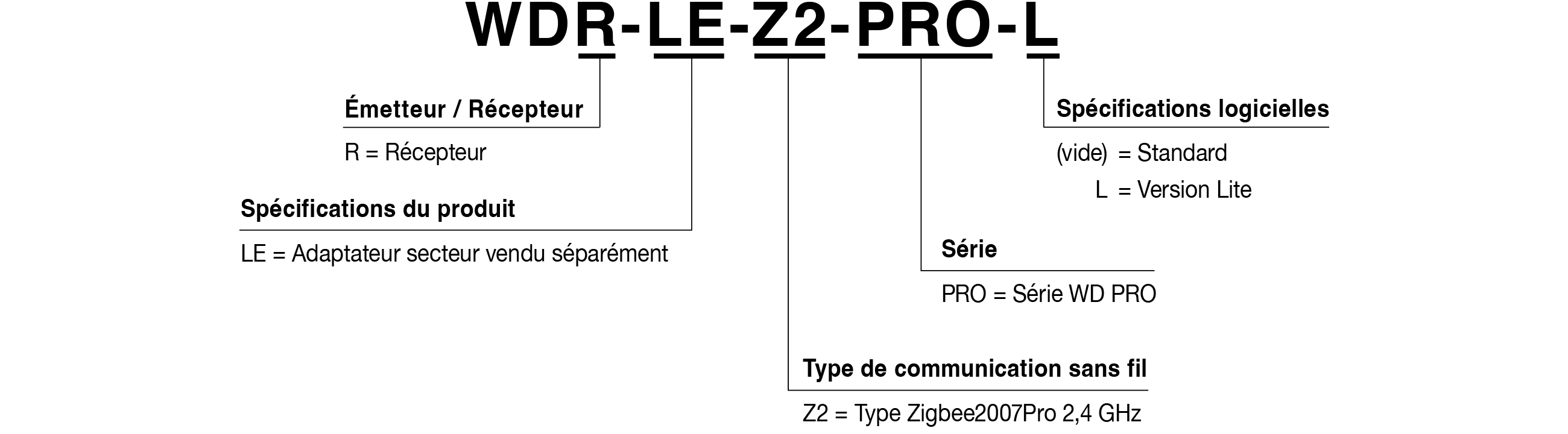

WDR-LE-Z2-PRO
Récepteur système d’acquisition de données sans fil
WD PRO〈Version Lite〉
WDR-LE-Z2-PRO-L
Alimentation 24V DC / USB / PoE
Fixation Montage horizontal / Montage mural / Montage au plafond
Communication réseau 10BASE-T / 100BASE-TX / 1000BASE-T
Connexion de l'émetteur Maximum 30 unités
Portée de communication Ligne de vue, environ 30 m *1
Paramètre d'adresse IP Configuration manuelle / configuration automatique DHCP
Température de fonctionnemen -10℃~+50℃ (accessoire adaptateur secteur: 0℃~+40℃)
Indice de protection IP20
Diagnostics de connexion sans fil Diagnostic en temps réel / diagnostic à longue période (1~72 heures)
Paramètres de l'émetteur sans fil Configuration intégrée via navigateur / logiciel WDS-WIN01 Utilisez WDS-WIN01
Communication avec le système hôte ・Fichier CSV * Utilisez WDS-WIN01・Communication SOCKET
 (Protocole WDR)・Communication SOCKET
(Protocole WDR PRO) ・Liaison de base de données (MySQL)・Communication Modbus / TCP
WD-PRO ・Fichier CSV * Utilisez WDS-WIN01・ Communication SOCKET
 (Protocole WDR)
Andon Display ×

※1 En raison des caractéristiques des ondes radio, cette valeur n'est qu'un point de référence.
