Dispositif de pilotage sans Fil

Pilotez à distance vos signaux et colonnes lumineuses PATLITE

  • Produits sans fil
  • Contrôle des E/S
  • Sans fil(Bluetooth 5.0)
  • Φ60
  • Intérieur
  • Dispositif de pilotage sans Fil WIO
  • Dispositif de pilotage sans Fil WIO
  • Dispositif de pilotage sans Fil WIO
  • Dispositif de pilotage sans Fil WIO

Ni PC ni logiciel requis!

Communication sans fil fiable avec Bluetooth® Longue Portée
Une couverture sans fil allant jusqu'à 100 mètres, et une fonction relais permettant une
communication longue portée jusqu'à 400 mètres !

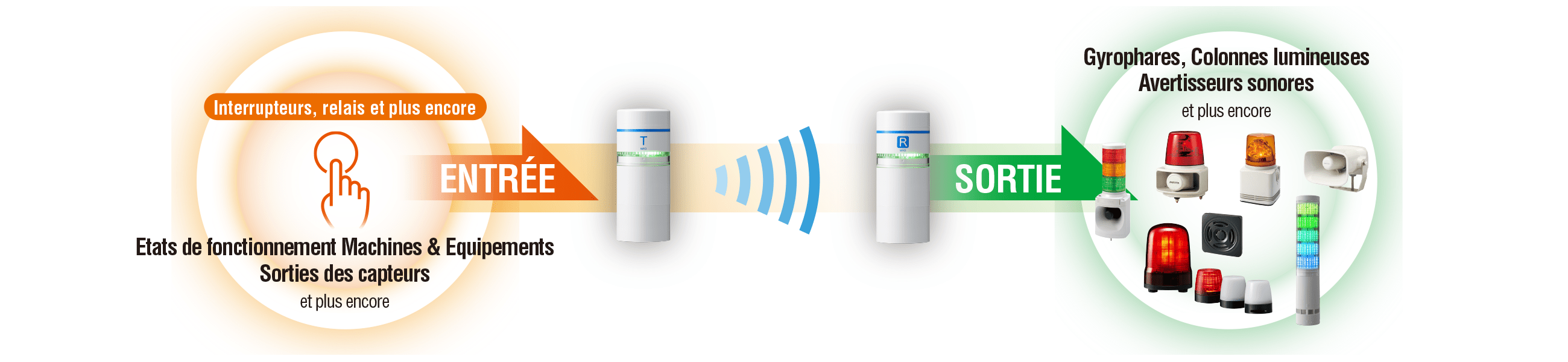

Pilote vos gyrophares, avertisseurs lumineux, avertisseurs sonores et plus encore !

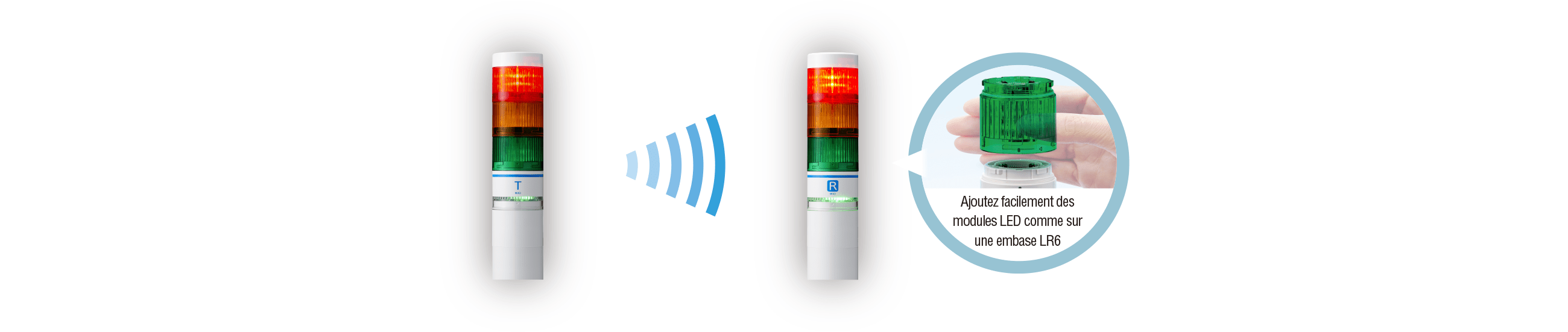

Fonction Miroir : dupliquez l'état du dispositif avec des modules LED supplémentaires !

Système de notification simple

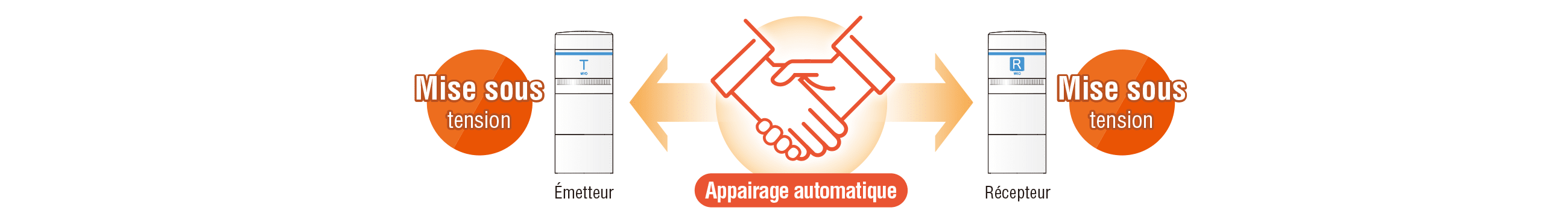

Branchement et utilisation facile en mode Plug & Play

L'appairage est complet lorsque l'alimentation est activée. Aucune configuration n'est nécessaire, et vous pouvez commencer à l'utiliser immédiatement.
La portée sans fil est de 100 mètres maximum en vision directe.

Communication sans fil fiable

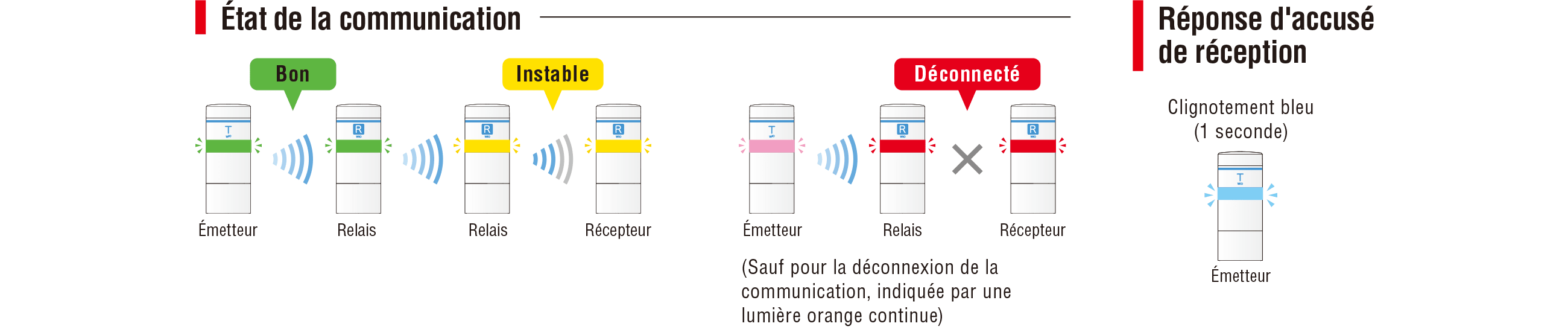

Utilisation de la communication BluetoothⓇ Longue Portée, garantissant une communication longue distance stable. Vous pouvez vérifier l'état de la communication avec les couleurs des indicateurs.

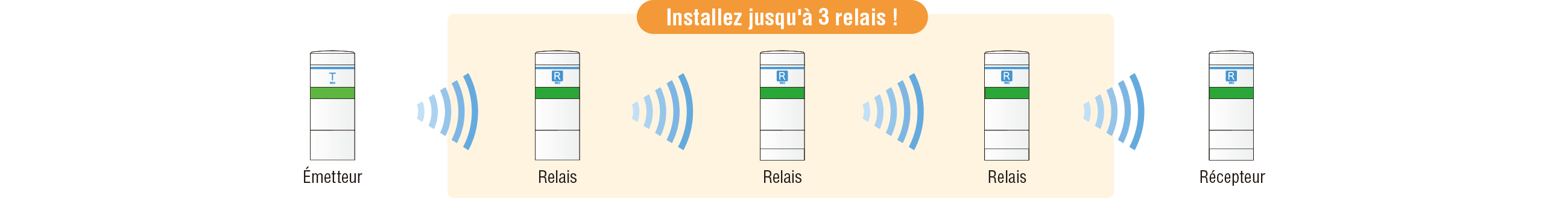

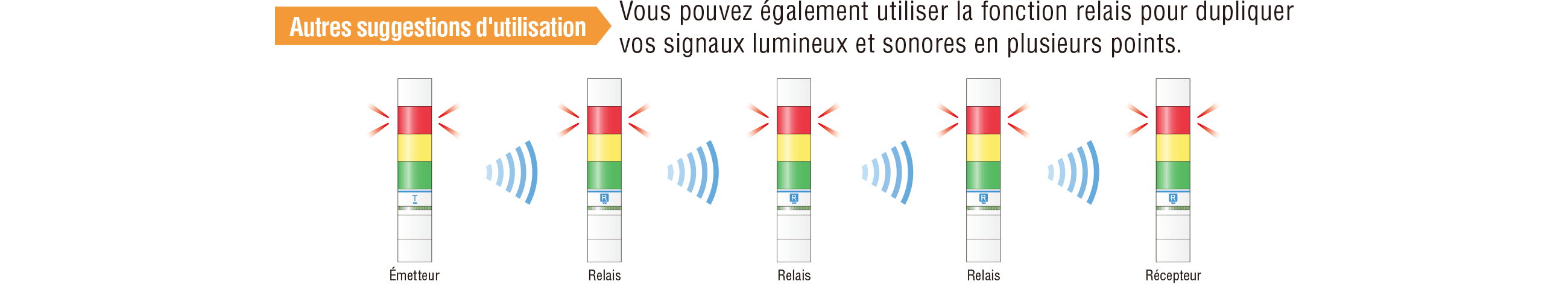

Fonction relais

Vous pouvez utiliser le récepteur comme relais* pour étendre la portée sans fil jusqu'à 400 mètres.
* Commutable via l'interrupteur coulissant du récepteur

Configuration facile

Vous pouvez facilement configurer le WIO grâce aux deep switch de l'émetteur principal.

Définissez des groupes de fonctionnement

Vous pouvez exploiter jusqu'à 8 groupes dans la même zone grâce à 8 canaux distincts

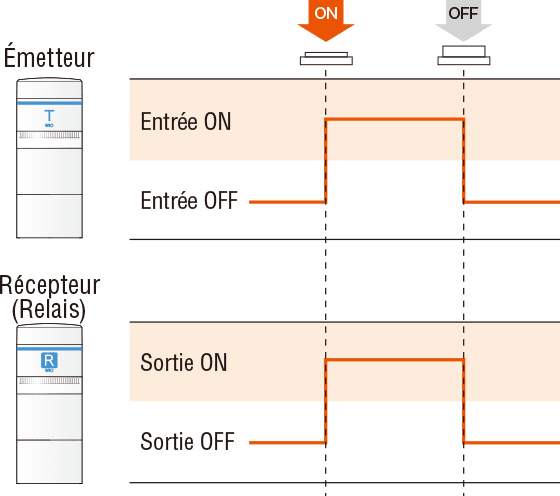

Mode duplication

Dupliquez vos notifications en pilotant chaque relai grâce aux signaux ON/OFF appliqués à l'émetteur

Configurez vos logiques d'entrée

Choisissez de dissocier les notifications de 2 relais, "A-ON" quand "B-OFF" et inversement

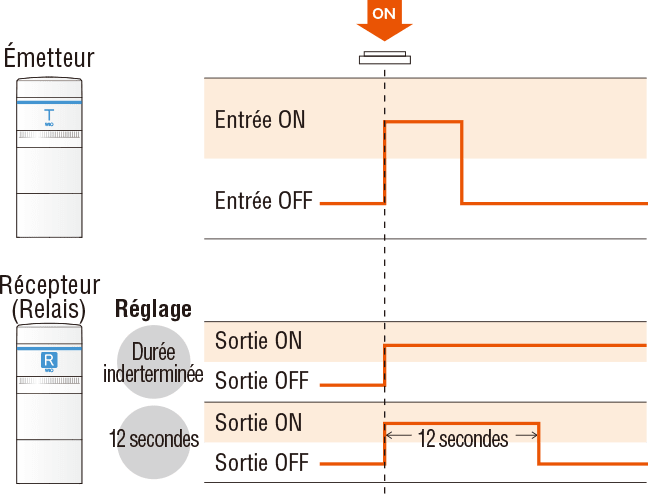

Mode impulsion

Choisissez de maintenir le signal de sortie en relais après une seule impulsion en entrée d'émetteur, pour une durée inderterminée ou 12 secondes

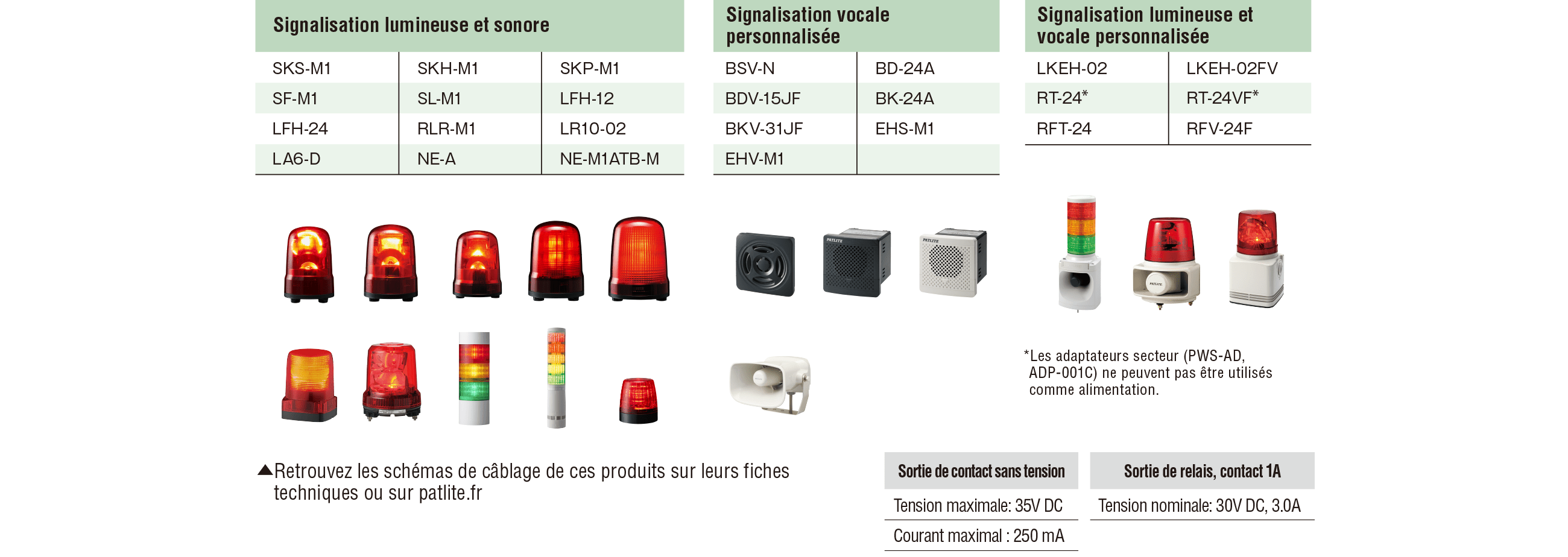

Appareils de notification compatibles

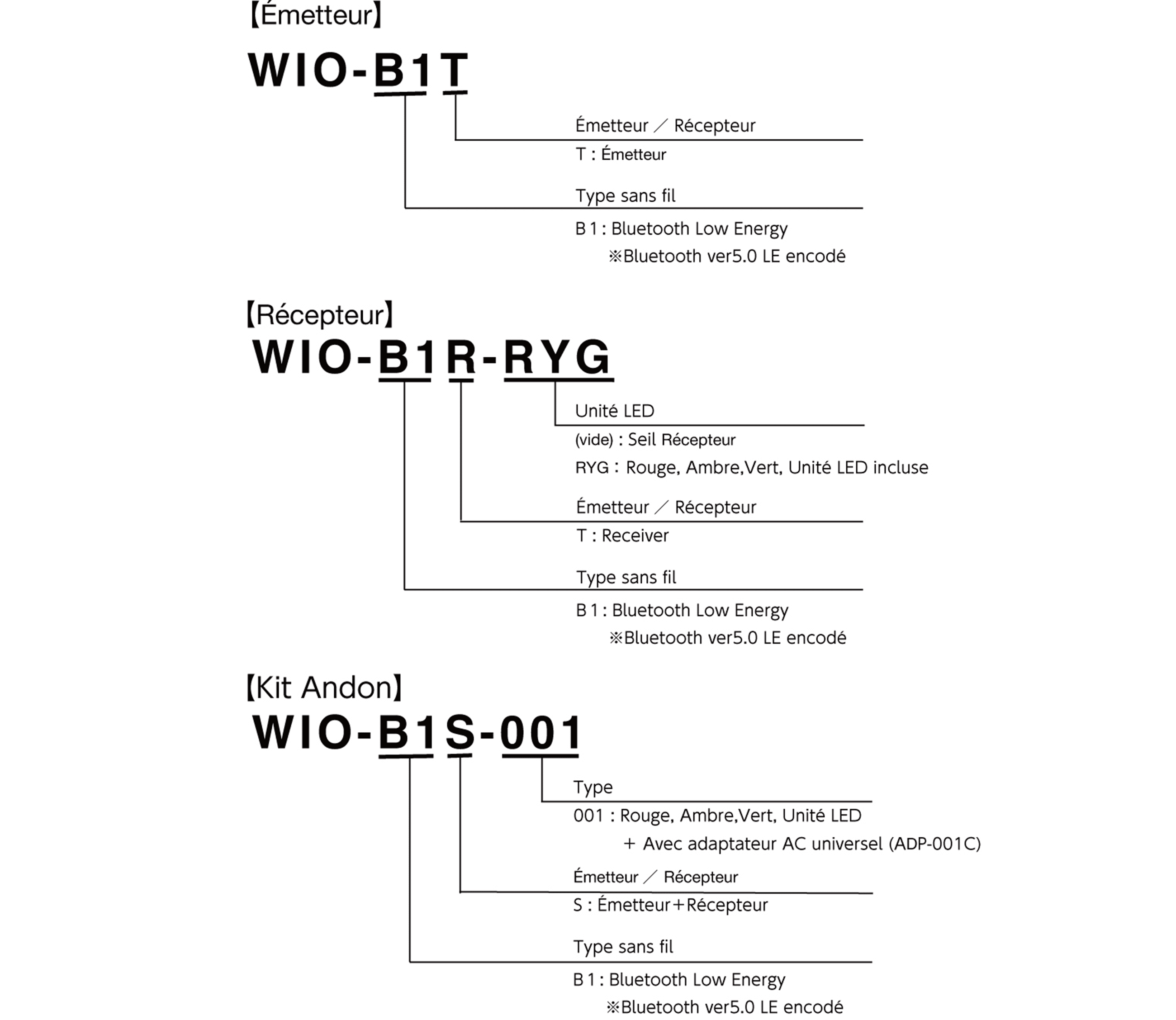

Comment commander

Code du modèle


Liste des modèles / contenus

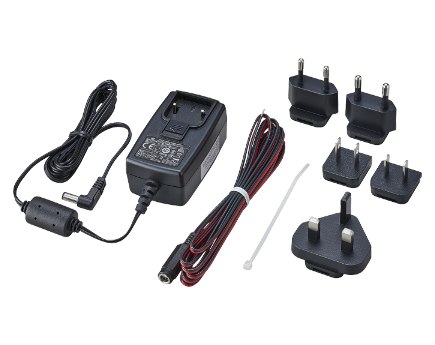

  Modèle Émetteur Récepteur Unité LED Adaptateur AC

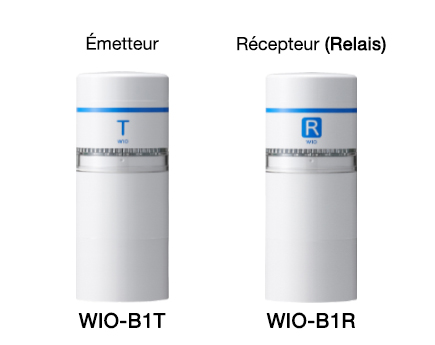

Émetteur WIO-B1T × × ×
Récepteur WIO-B1R × × ×

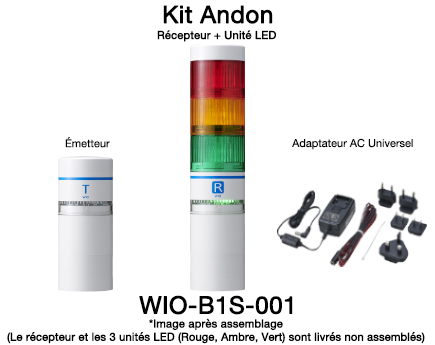

Kit Andon WIO-B1S-001

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".

Téléchargements de fichiers

(*) Le service de téléchargement des données sur ce site est réputé avoir convenu des conditions "".



Pièces de rechange

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																O-ring: LR6 (5 pieces)
B25110067-F1 2~5 Depends on the number of tiers.
