Balise lumineuse 56mm

Série de balises lumineuses LED comprenant des modèles monochromes ou multicolores avec un capteur tactile capacitif et un boitier robuste pour une polyvalence maximale

  • Contrôle de puissance (couleur unique)
  • Contrôle des contacts (Multicolore)
  • Φ56
  • Balises de signalisation
  • Continu sur
  • Alarmes (Multicolore Type : NB/TB)
  • 88dB
  • Intérieur (vertical)
  • IP67 (Multicolore sans alarme)
  • IP65
  • Rouge
  • Ambre
  • Vert
  • Bleu
  • Blanc
  • Multicolore (7 couleurs)

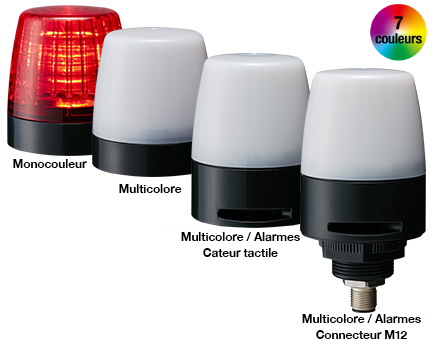

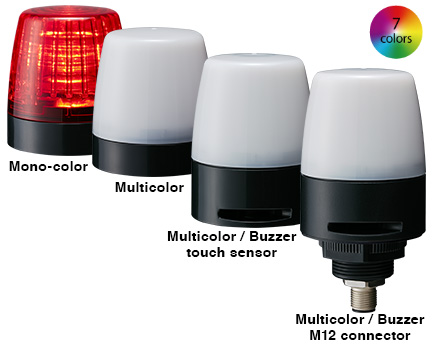

  • Balise lumineuse 56mm NE-A

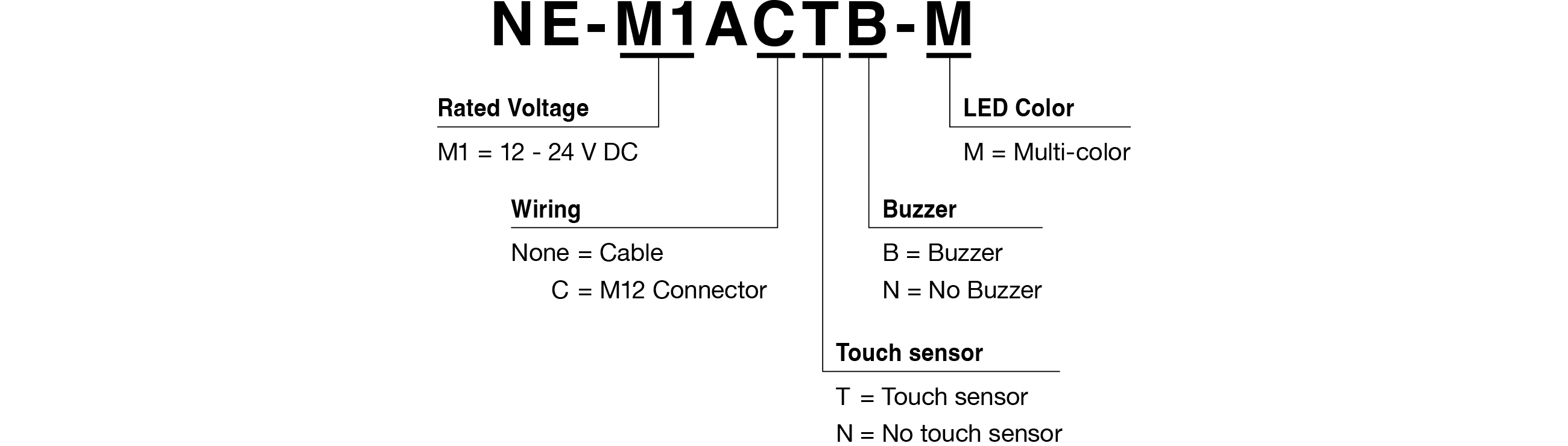

Multi-color model
【Modèles multicolores】
  • Capteur tactile capacitif permettant des confirmations d'états en temps réel
  • Comprend l'utilisation simultanée d'alertes fixes, clignotantes et sonores
  • Jusqu'à 7 couleurs de LED sélectionnables
  • Basculez entre 4 motifs (rouge, bleu, blanc ou désactivé) avec le mode capteur tactile
  • Indice de protection élevé pour l'utilisation dans des environnements difficiles

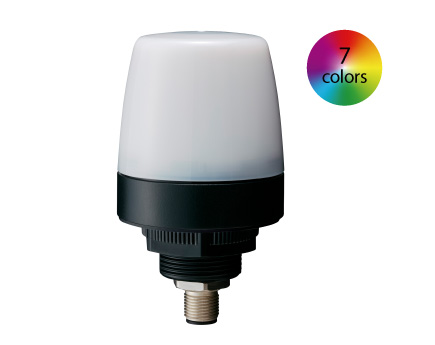

  • Connecteur M12 disponible pour un câblage facile

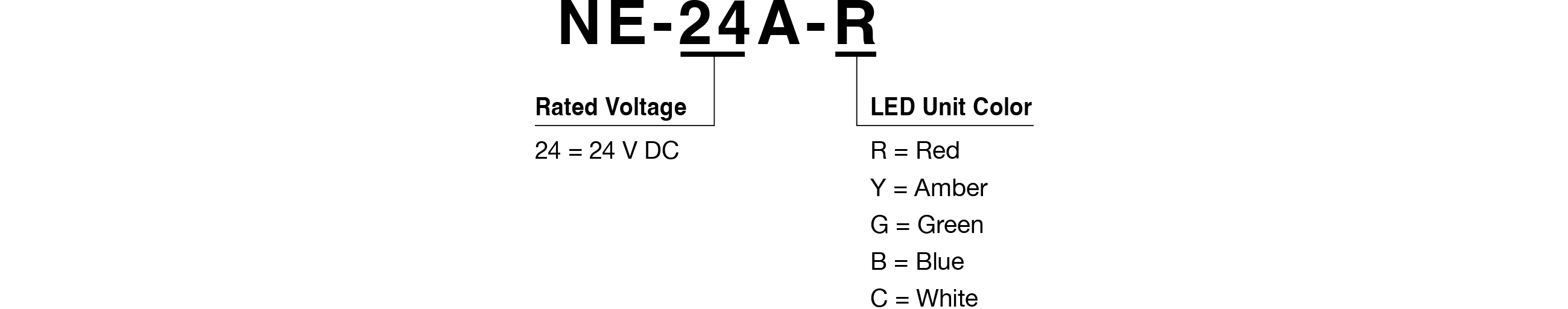

Single color Model

【Modèles monocouleurs】

  • Choisissez entre 5 couleurs de LED (Rouge, Orange, Vert, Bleu, Blanc)
  • Développement d'un nouveau réflecteur émettant une lumière uniforme, pour une indication claire et sans ambiguïté
  • Indice de protection élevé pour l'utilisation dans des environnements difficiles






Tension nominale

24V DC 12-24V DC

Lieu d'installation


Direction du montage

Toutes directions

Indice de protection


Couleurs lumineuses

Rouge / Orange / Vert / Bleu / Blanc


(Rouge / Orange / Vert / Bleu / Blanc / Bleu clair / Violet)

Pression acoustique

- 88dB
Intermittent ou continu

Motif d'éclairage/Fonction



Fixe/Capteur tactile



Bornier sans vis

Cable (2m) M12 Connector
