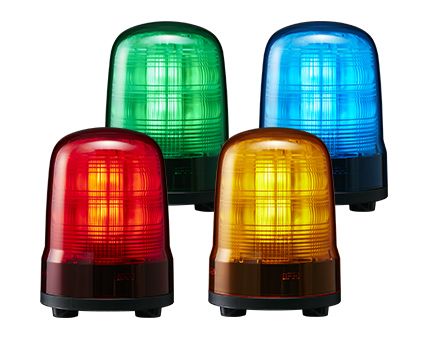

Signal clignotant de la balise de signalisation

Commutateur rotatif Câblage CH1 CH2 CH1 CH2 CH1 CH2 CH1 CH2
OFF OFF ON OFF OFF ON ON ON
0 Désactivé Rotation (120 tr/rpm) Flash triple Rotation (120 tr/rpm)
1 Désactivé Rotation (180 tr/rpm) Flash triple Rotation (180 tr/rpm)
2 Désactivé Flash triple Impulsion Flash triple
3 Désactivé Rotation (60 tr/rpm) Rotation (120 tr/rpm) Rotation (180 tr/rpm)
4 Désactivé Flash unique Flash double Flash triple
5 Flash triple Flash triple Flash triple Flash triple
6 Impulsion Impulsion Impulsion Impulsion
7 Rotation (60 tr/rpm) Rotation (60 tr/rpm) Rotation (60 tr/rpm) Rotation (60 tr/rpm)
8 Rotation (120 tr/rpm) Rotation (120 tr/rpm) Rotation (120 tr/rpm) Rotation (120 tr/rpm)
9 Rotation (180 tr/rpm) Rotation (180 tr/rpm) Rotation (180 tr/rpm) Rotation (180 tr/rpm)
