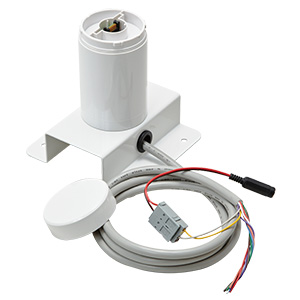

Wireless Data Acquisition System LR Transmitter
WDT-6LR-Z2
Wireless Data Acquisition System LR Transmitter
Transmitter attachment for the LR6 Signal Tower to enable wireless data transmission.
Azure function description Azure function description

Caractéristiques du produit

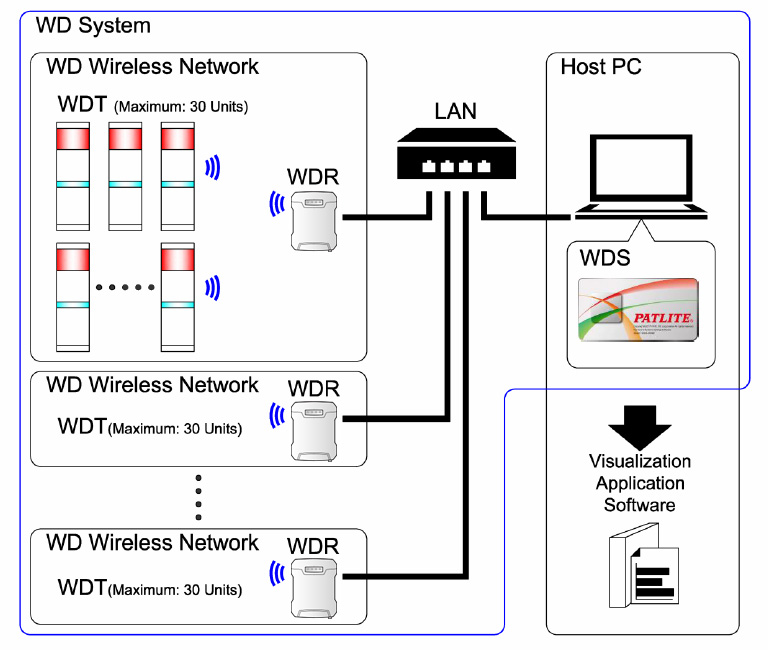

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.





WDS




Model Specifications

Rated Voltage- 24V DC
Protocols- Telecommunication Protocols: IEEE-802.15.4 (Wireless Communications)
Functions- Connected Model: LR6 type Tiered Signal Tower Body unit top attachment
- Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
- Communication distance: About 30m from source (Reference Value)
- Number of Available Contacts: Six points (red, amber, green, blue, white, buzzer)
Conformity Standards- Radio Law Authorized Country: Japan (ARIB STD-T66)
               United States (FCC)
               Europe (CE)
