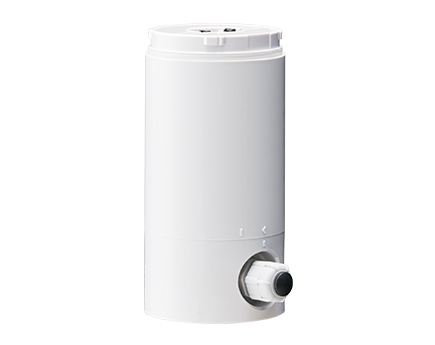

WD PRO Base Unit

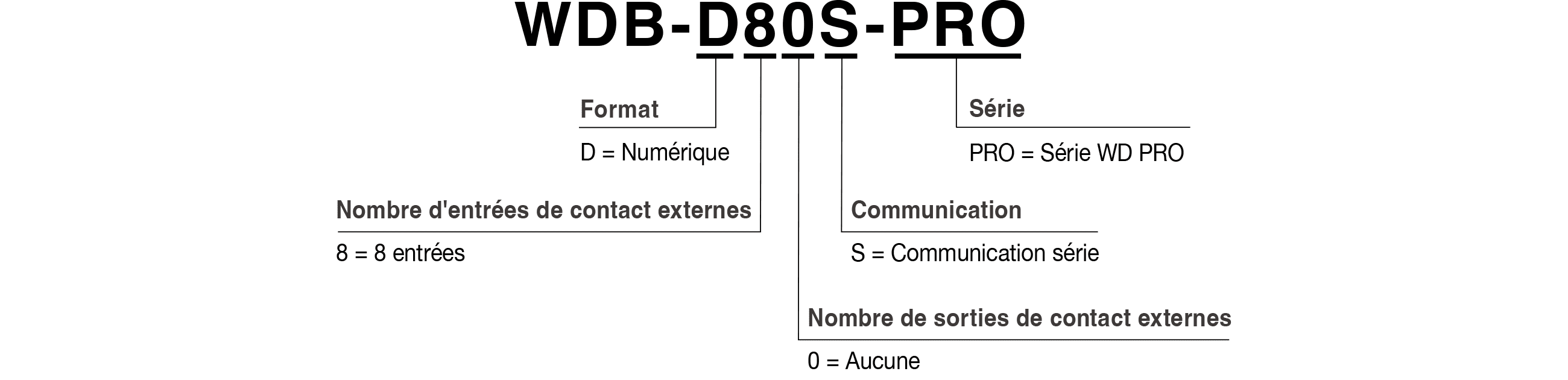

WDB-D80S-PRO
WD PRO Base Unit
Contact Input -Serial Communication Base Unit
The WD PRO transmitter and LED unit are added for serial data acquisition and contact input information and detailed equipment operation information is rendered visible.

Caractéristiques du produit

WDB-D80S-PRO can only be used for WDT-6LR-Z2-PRO

It can be mounted on the transmitter WDT-6LR-Z2-PRO for WD PRO.



  • Features a serial communication interface to attach devices such as a barcode reader to trace detailed employee data and control product quality. Obtain up to 60 bytes of serial data total.

  • Equipped with 8 contact inputs enabling acquisition of up to 255 data codes. Supports NPN/PNP/relay contact; output can be a decimal, binary, or hexadecimal number.

  • Features 2-way wireless communication to remotely trigger tower light signals from host PCs.

  • The WDS-WIN01 (ver. 1.03 or later) allows you to export data as a CSV file which can be easily manipulated for various calculations and charts.







Model Specifications

Rated Voltage24V DC
SizeΦ60mm
Protection RatingIP65
External Contact InputSignal tower inputs (red, yellow, green, blue, white, buzzer);
8 external contact inputs; 1 reset input; serial communication input
